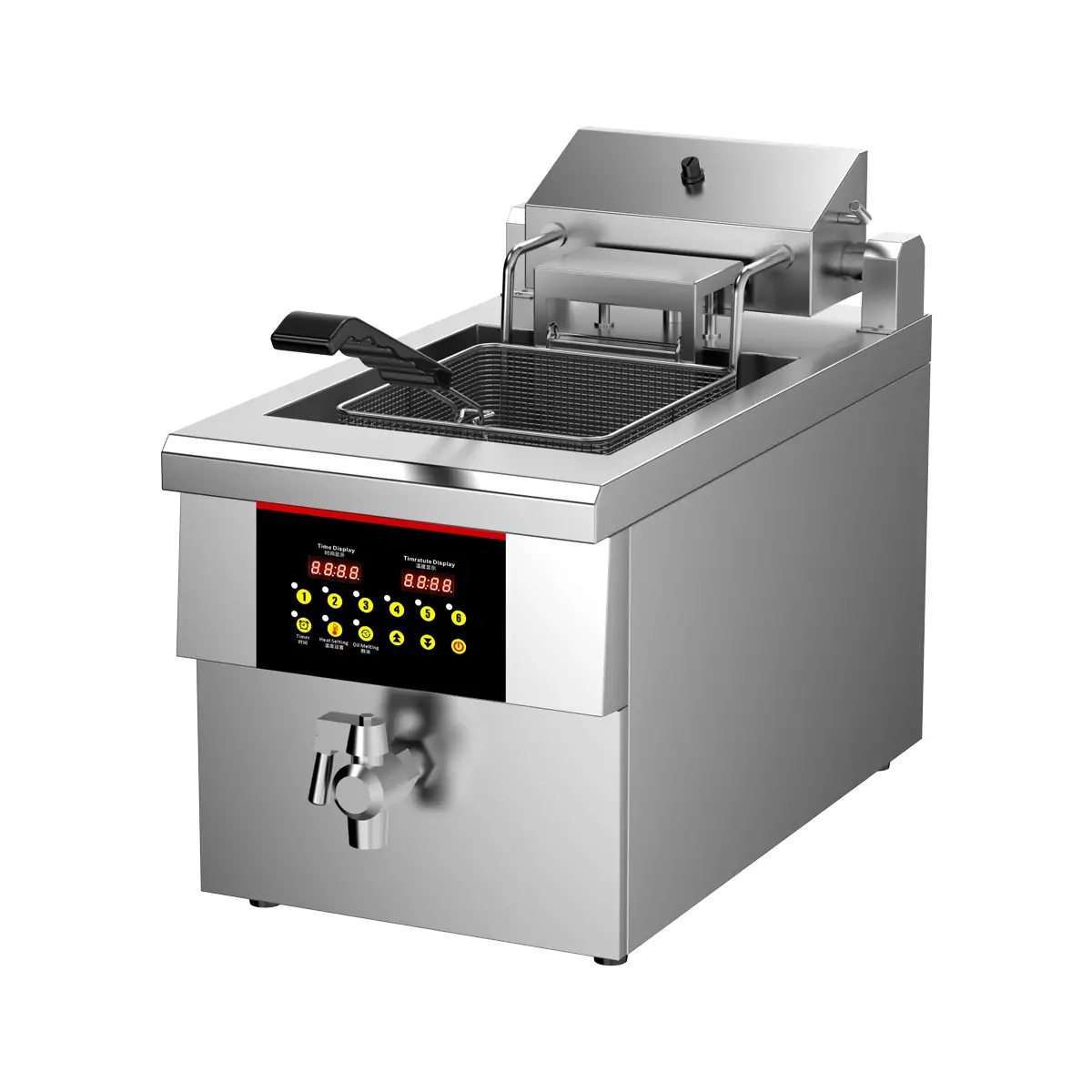

EF021-C/EF022-C Single Tank Automatic Lifting Commercial Electric Deep Fryer With Drain Valve– 12L 15L
The EF021-C/EF022-C is a commercial deep fryer with automatic lifting and smart button controls, designed for restaurants, fast food shops and professional countertop frying.
Available in 12L and 15L configurations, the fryer automatically raises the basket after the programmed frying time, allowing food to drain above the oil.
Its smart control panel provides preset menus, oil-melting mode, temperature setting and real-time temperature display.
Shangbang is a commercial fryer manufacturer and factory supporting distributors, foodservice equipment companies and restaurant businesses.
We provide wholesale supply, OEM and ODM services, custom configurations and private labeling for commercial electric fryer projects.

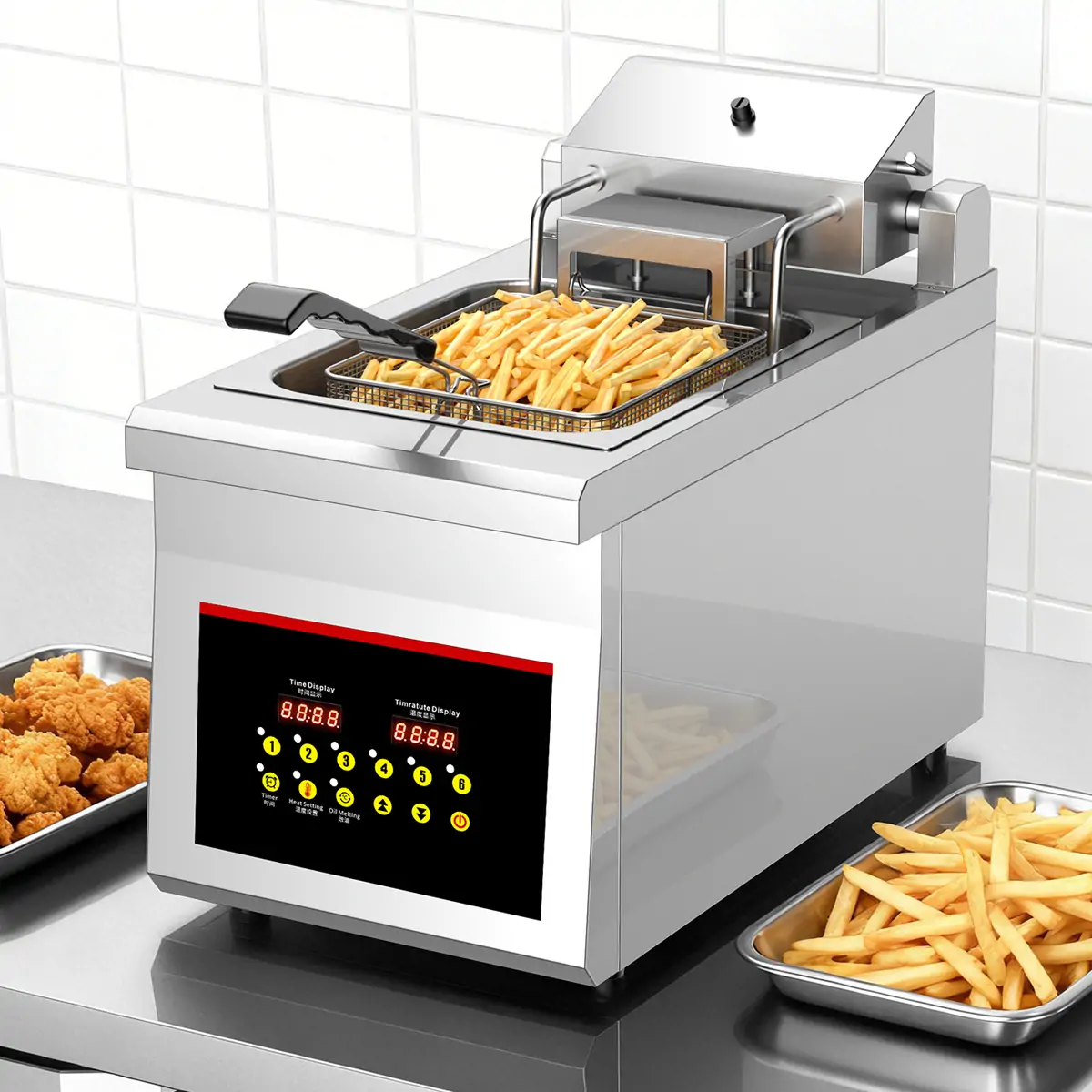

EF021-C/EF022-C Automatic Lifting Commercial Deep Fryer Applications
The EF021-C/EF022-C automatic lifting commercial deep fryer is designed for foodservice businesses that need a compact countertop fryer with easier frying and draining control. The 12L and 15L models provide practical capacity for restaurants, fast food shops, snack bars, food trucks and commercial kitchens where countertop equipment is preferred. After the programmed frying time is completed, the automatic lifting mechanism raises the frying basket above the oil, allowing excess oil to drain before serving. The smart control panel provides preset cooking menus and real-time temperature display, helping operators manage repeated frying tasks more consistently. The compact size also makes these models suitable for cafes, small catering operations, hotel kitchens and selected home users who require a larger-capacity countertop fryer.

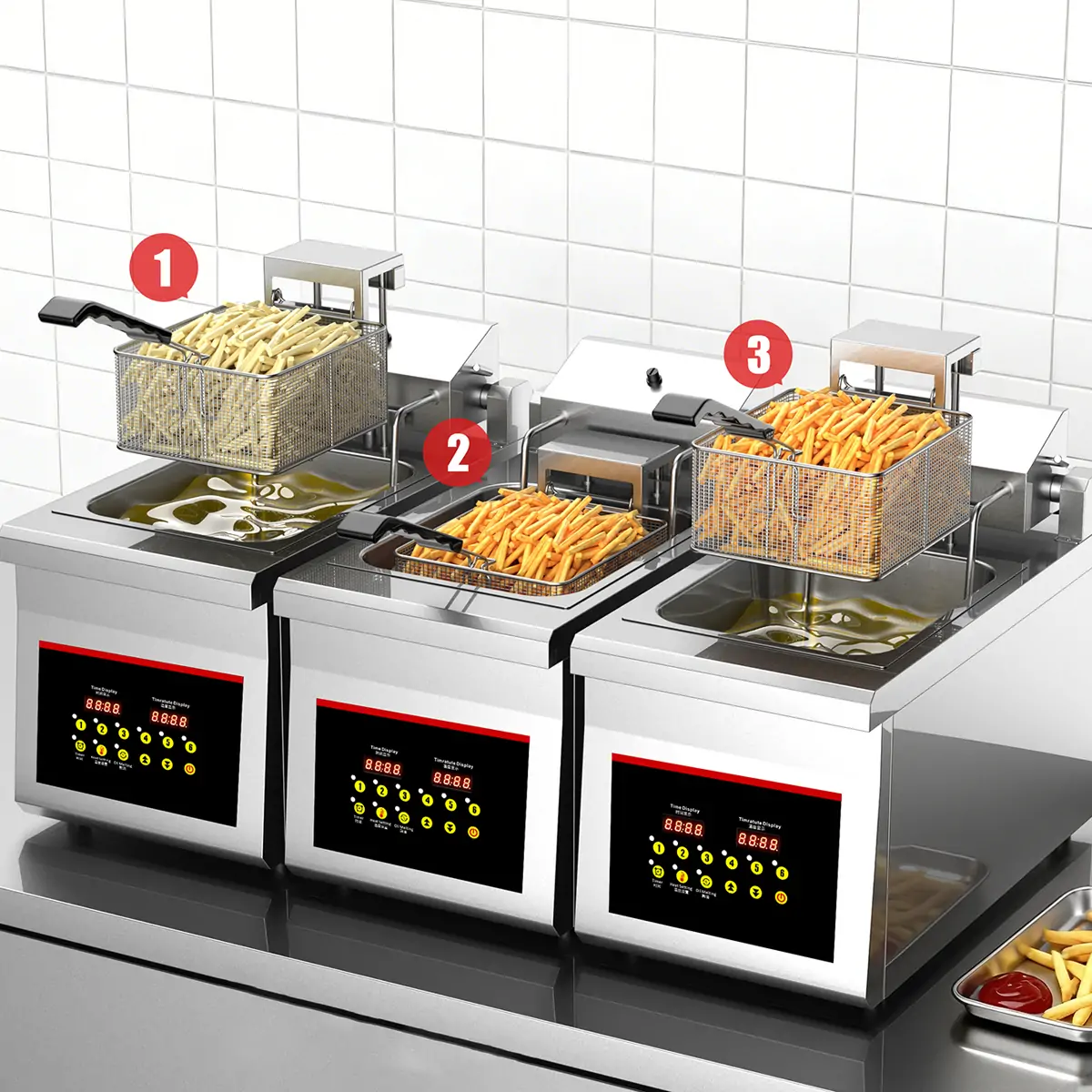

Automatic Basket Lifting for Multiple Fryers

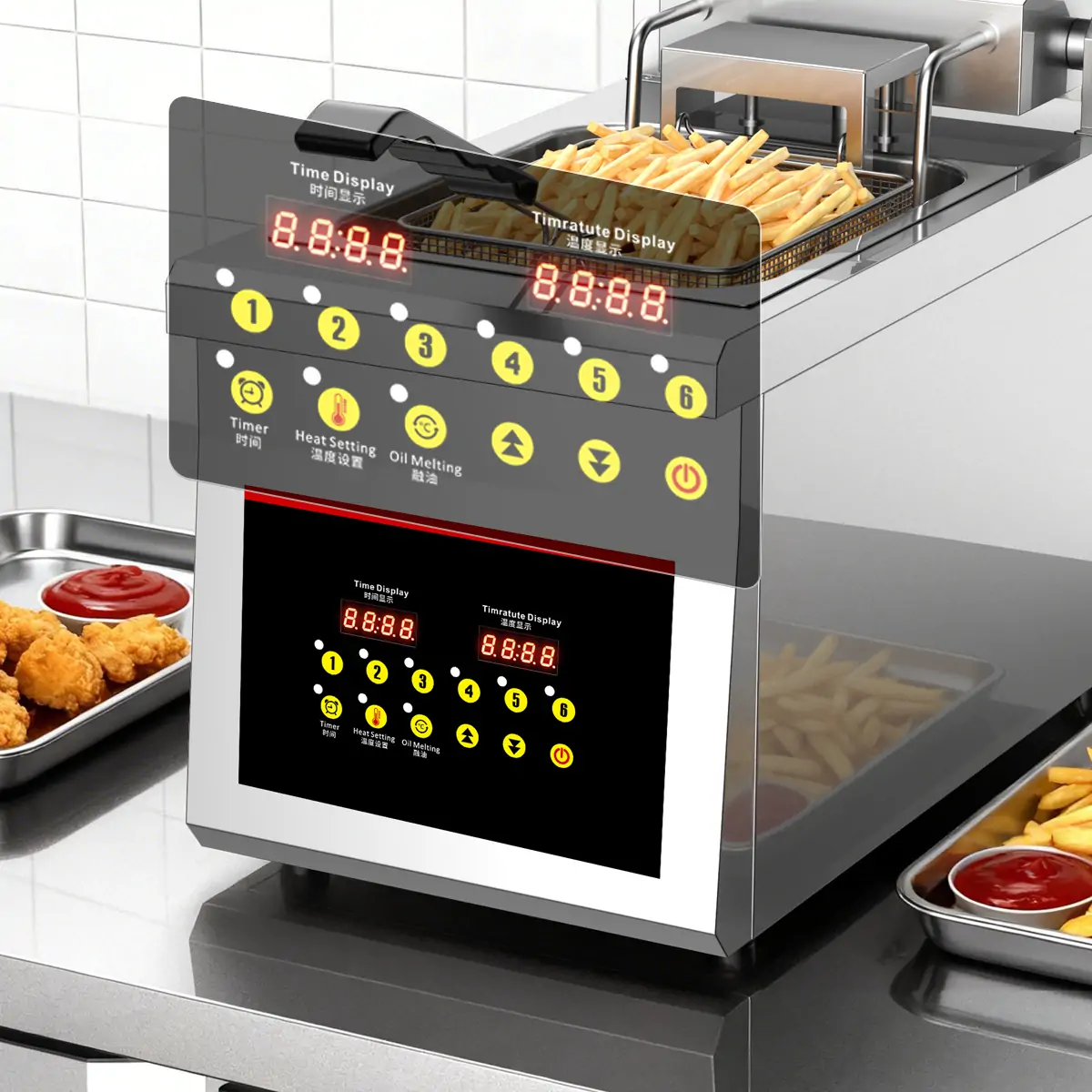

Smart Control Panel with Preset Menus

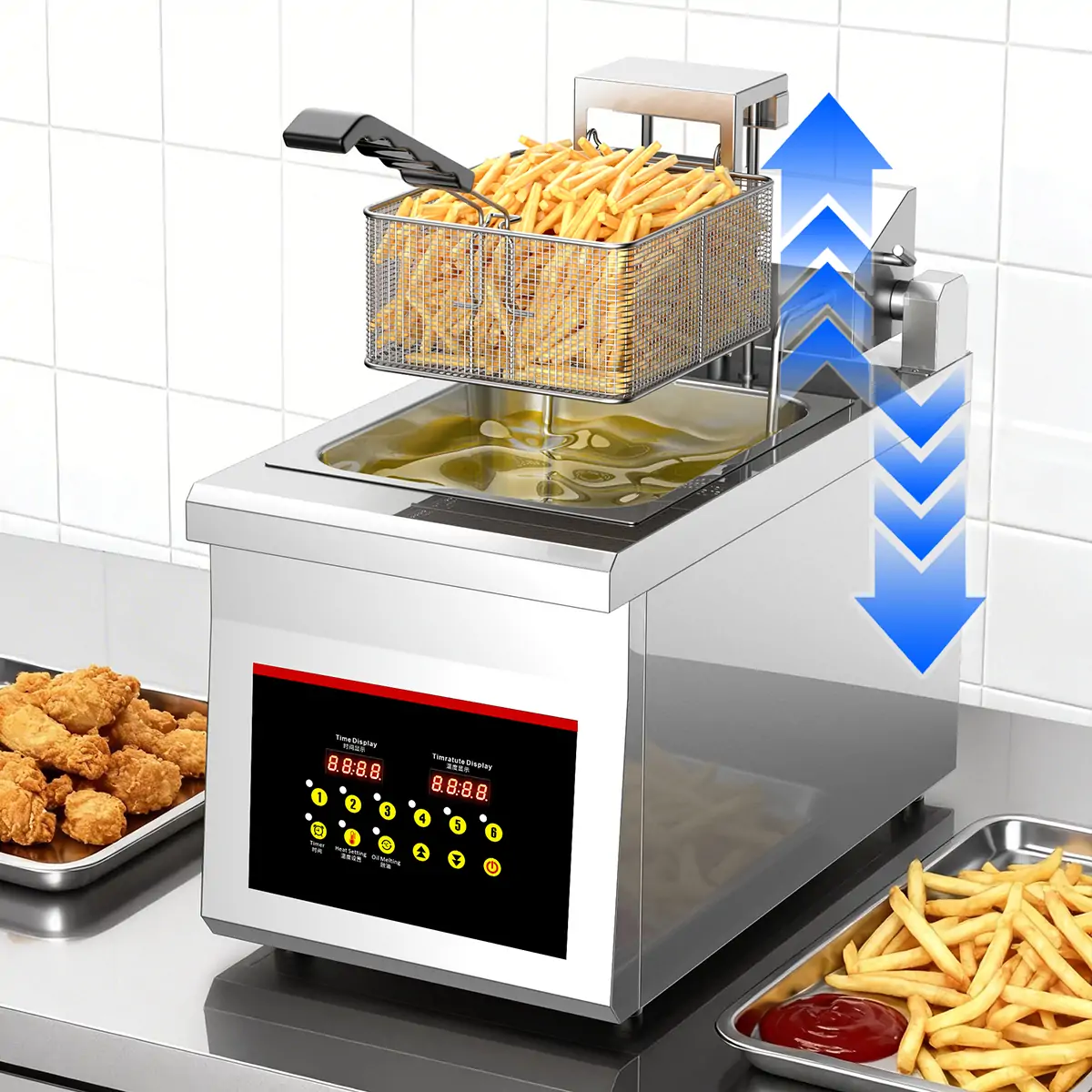

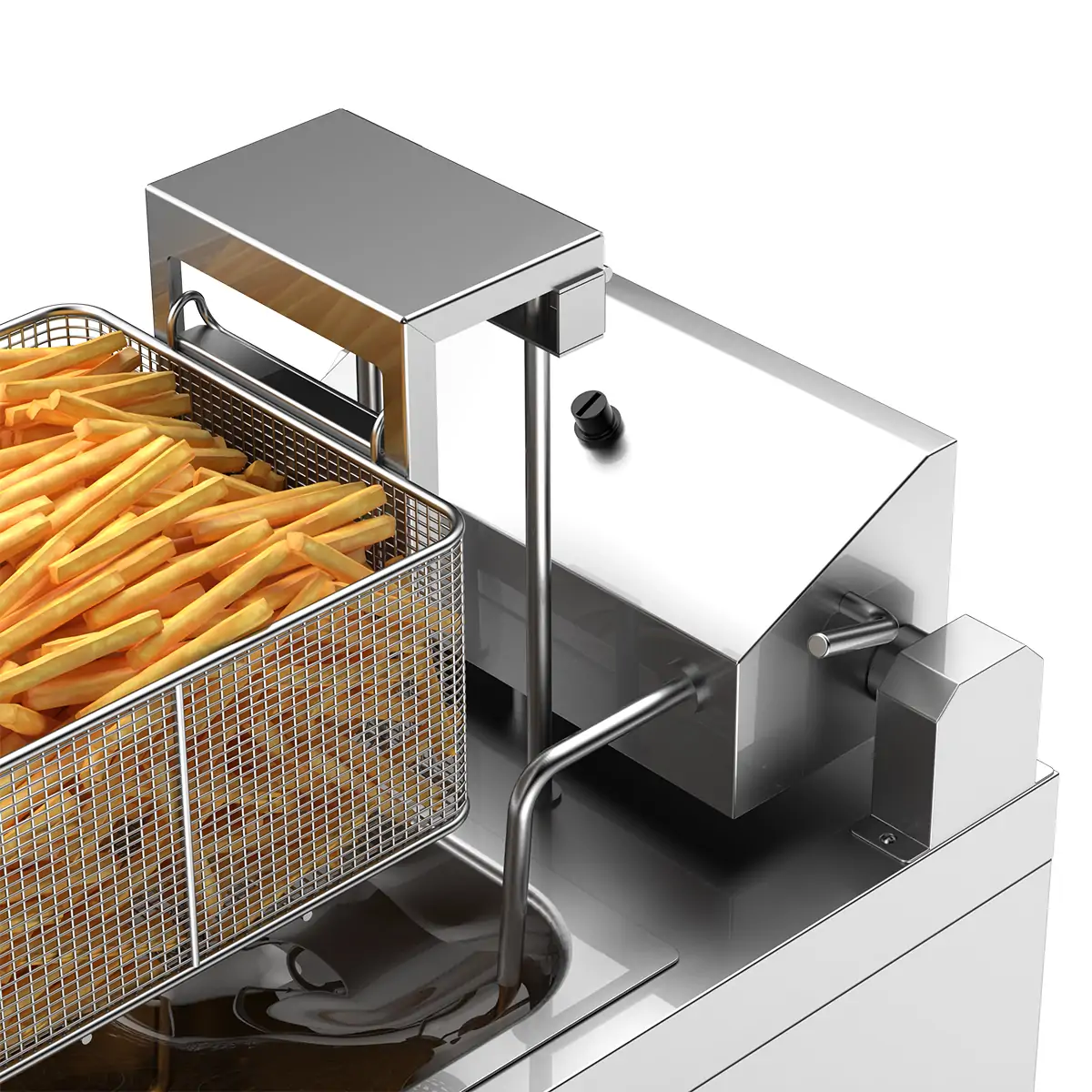

Automatic Lifting Mechanism and Basket Movement

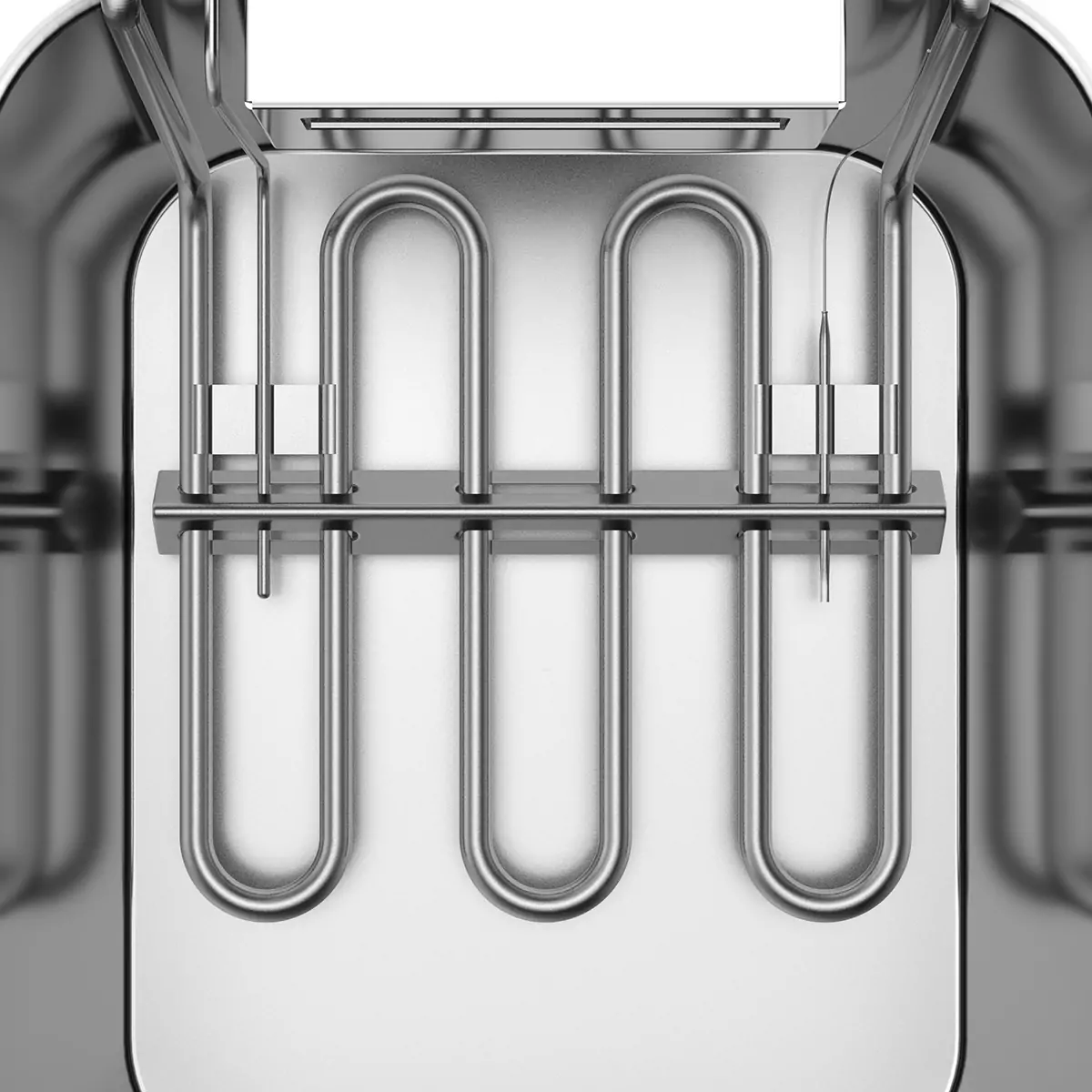

High Quality Heating Tube and Temperature Probe

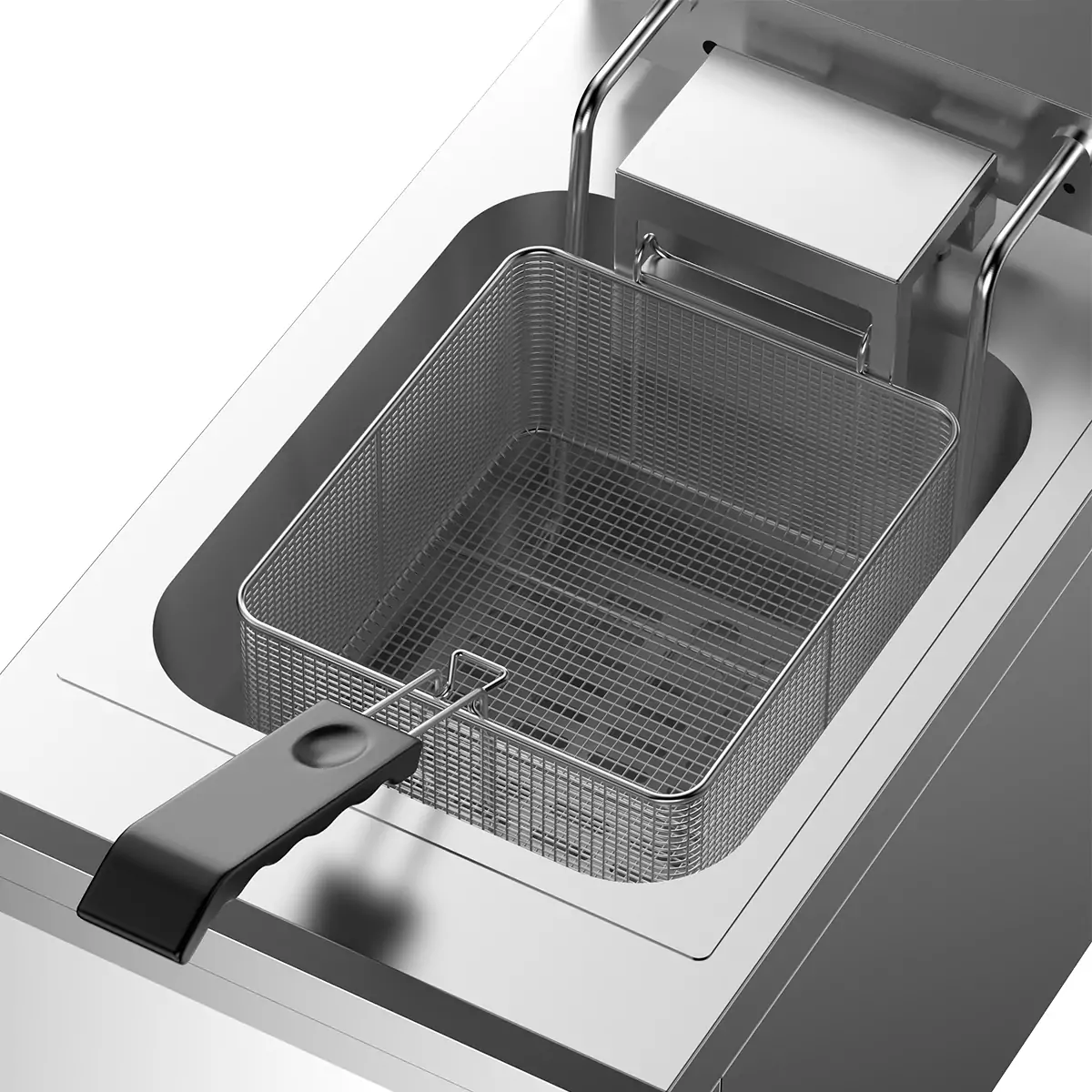

Frying Basket Positioned Inside the Oil Tank

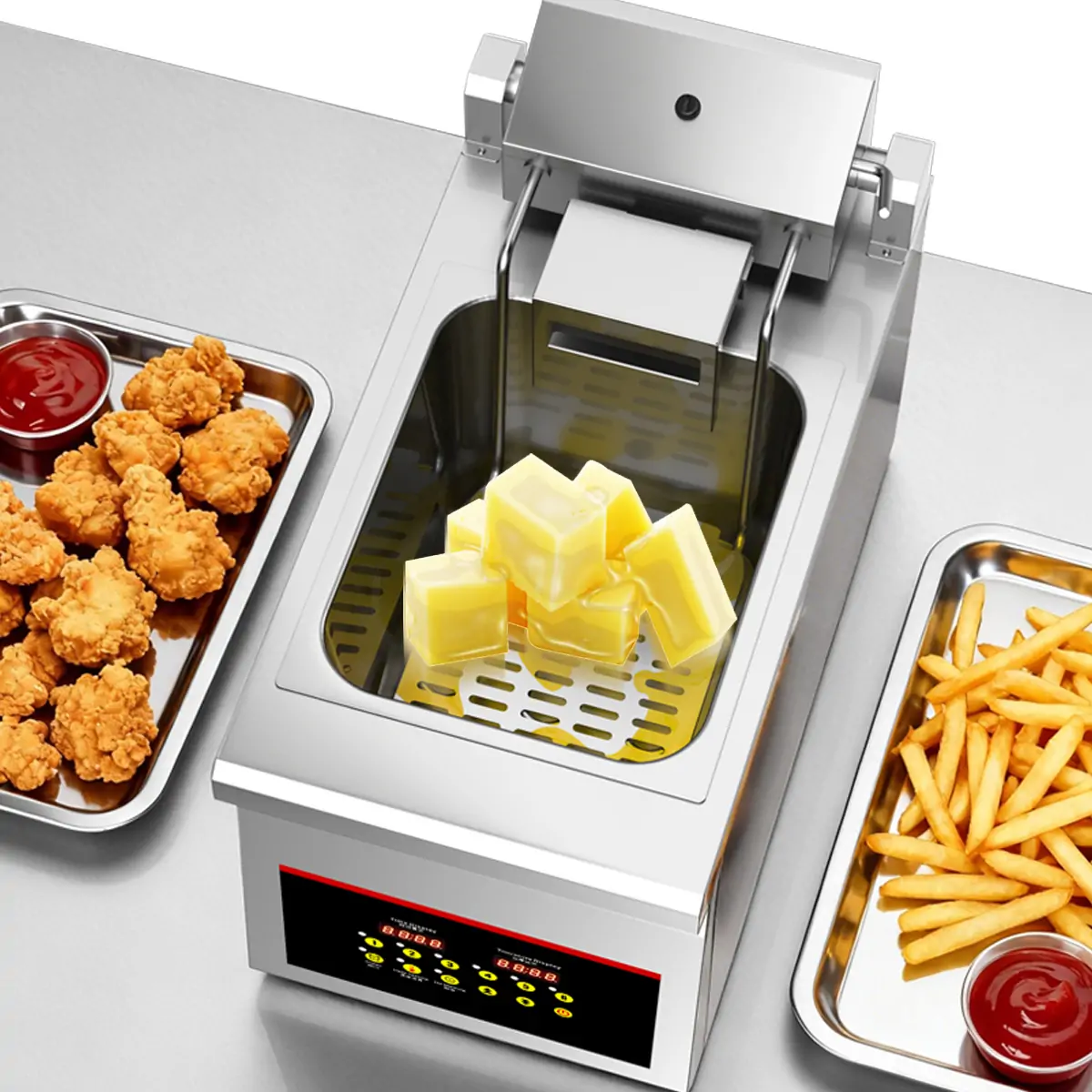

Oil Melting Mode for Liquid and Solid Frying Oil
Product Information
| Image |  |  |
|---|---|---|
| Model | EF021-C | EF022-C |

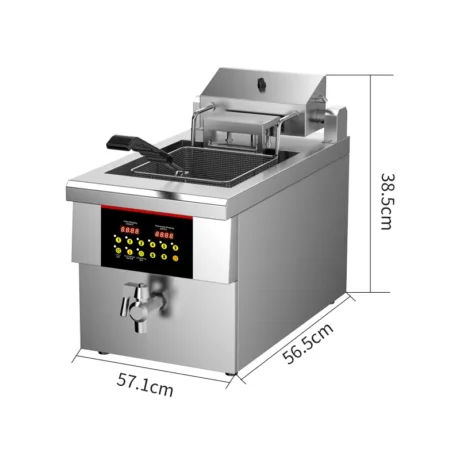

| Machine Size | 30 × 56.5 × 38.5 cm (11.8 × 22.2 × 15.2 in) | 35 × 56.5 × 38.5 cm (13.8 × 22.2 × 15.2 in) |
| Cooking Area | 24 × 29 × 19 cm (9.4 × 11.4 × 7.5 in) | 30 × 33 × 19 cm (11.8 × 13.0 × 7.5 in) |
| Oil Tank Capacity | 12L(Liter)=24 lb(pound)=12.72 qt(quart)=3.12 gal(gallon) | 15L(Liter)=30 lb(pound)=15.9 qt(quart)=3.9 gal(gallon) |
| Recommended Oil Capacity | 8L(Liter)=16 lb(pound)=8.48 qt(quart)=2.08gal(gallon) | 11L(Liter)=22 lb(pound)=11.66 qt(quart)=2.86gal(gallon) |
| Rated Power | 3.25KW | 4KW |
| Custom Voltage / Frequency | 110-130V/60Hz & 220-240V/50Hz & 220-240V/60Hz & 380V/50Hz | |
| Custom Plug | US plug / EU plug / UK plug / AU plug etc. | |
| Temperature Range | 60~200℃ / 140~392℉ | |
| Control Type | Smart Button Control Panel | |
| Oil Tank Option | Removable Tank without Drain Valve / Fixed Tank with Drain Valve | |
| Product Type | Automatic Lifting Commercial Electric Deep Fryer |
EF021-C/EF022-C Automatic Lifting and Smart Control Fryer Operation
The EF021-C/EF022-C combines automatic basket lifting with a smart button control panel to simplify repetitive countertop frying tasks. Operators can set the desired frying temperature and select one of five preset menus, while the LED display shows the current temperature in real time. When the programmed frying time is completed, the automatic lifting mechanism raises the basket above the oil, allowing fried food to drain before removal. A dedicated oil-melting preset supports controlled heating when solid frying oil is used. The fryer also features a sensitive temperature probe, high-quality heating tube and multiple electrical protection functions, including over-temperature, dry-burn and temperature-control protection. Its thick stainless steel body, removable heating head assembly and flexible oil tank options are designed to make daily cleaning and commercial operation more convenient.
The EF021-C and EF022-C are single-tank smart countertop commercial electric deep fryers designed for restaurants, fast food shops, snack bars and other foodservice operations. Available in 12L and 15L configurations, both models combine compact countertop design with automatic basket lifting for more convenient frying and draining.
The smart control panel features five preset cooking menus, an oil-melting preset, temperature setting and real-time LED temperature display. After the programmed frying time is completed, the automatic lifting system raises the basket above the oil, allowing excess oil to drain before serving. This helps simplify repetitive frying tasks and improve consistency during daily operation.

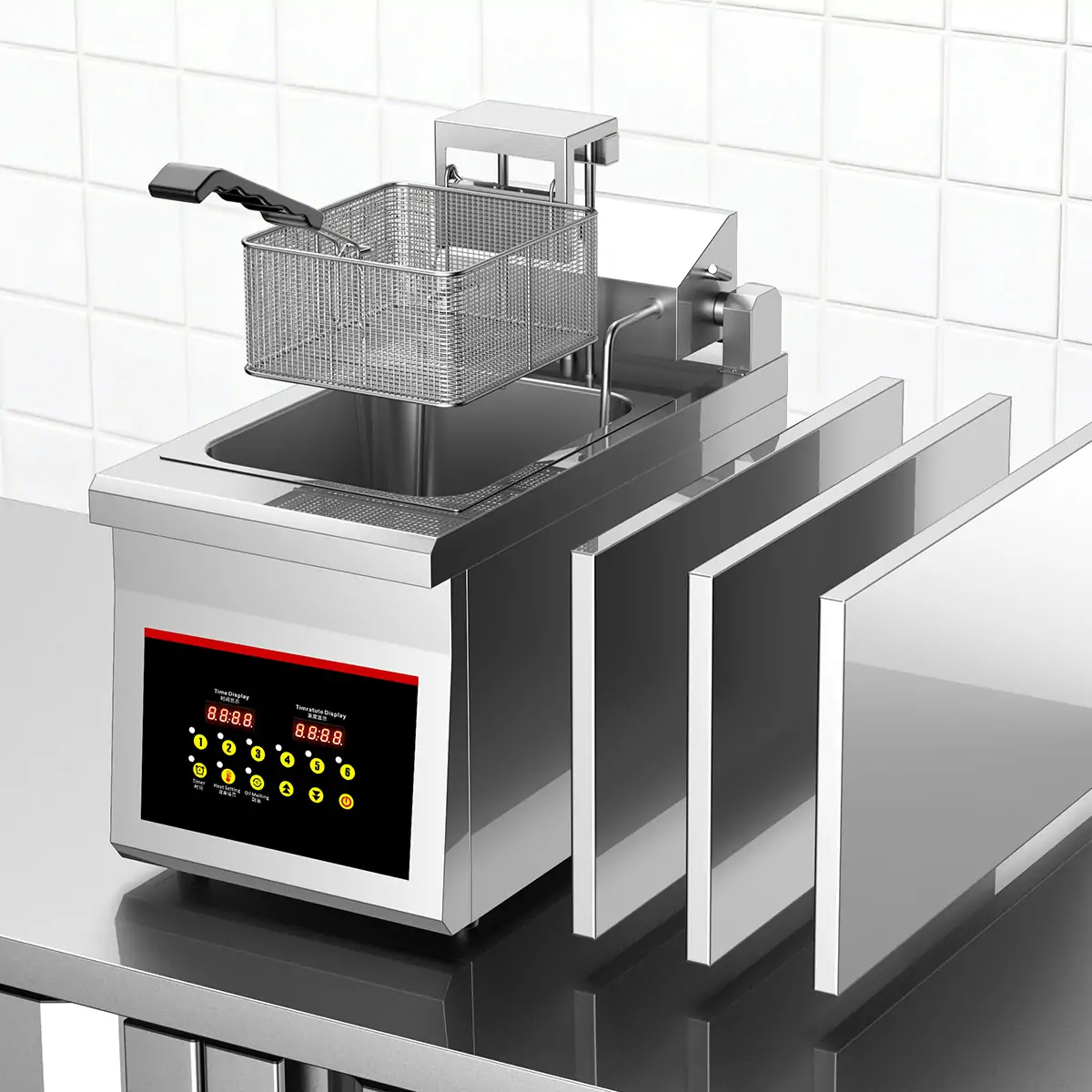

Both models use a high-quality heating tube and sensitive temperature probe for responsive temperature control. Multiple protection functions, including over-temperature, dry-burn and temperature-control protection, help support safer commercial use. The fryer also features a thick stainless steel body, 304 stainless steel food-contact components, Min/Max oil level markings and a splash-resistant cover.
For easier cleaning, the heating head assembly can be rotated or folded back, while the oil tank is available with either a removable tank without a drain valve or a fixed tank with a drain valve. Shangbang supports OEM and ODM customization, including electrical specifications, control systems, basket and tank configurations, materials, packaging and private labeling.
Shangbang is a commercial fryer manufacturer and factory supplier in China, providing wholesale, OEM/ODM and custom commercial electric fryer solutions for distributors, foodservice equipment companies and restaurant businesses.
OEM & ODM Commercial Fryer Manufacturing Solutions
We provide OEM and ODM manufacturing services for commercial electric fryers and gas fryers worldwide.
With rich export experience and flexible customization capabilities, we support distributors, wholesalers, restaurant equipment brands, chain catering companies, and commercial kitchen projects.
Custom Voltage, Frequency & Power
Custom Plug Types
Custom Stainless Steel Materials
Custom Temperature Control System
Custom Control Panel Design
Custom Machine Structure Design
Custom Tank Quantity & Capacity
Custom Structural Detail Design
Custom Functional Features
Custom Fry Basket Design
OEM Branding Solutions
Custom User Manual & Packaging
Custom Certification Support
Product FAQs
How does the automatic lifting function work?
After the programmed frying time is completed, the automatic lifting mechanism raises the frying basket above the oil. This allows excess oil to drain before the food is removed and makes repeated frying operations more convenient.
What is the difference between EF021-C and EF022-C?
The main difference is capacity and size. EF021-C has a 12L oil tank, 3.25KW rated power and a 30 × 56.5 × 38.5cm body. EF022-C has a 15L oil tank, 4KW rated power and a 35 × 56.5 × 38.5cm body. Both models use 220V / 50Hz, smart button controls and automatic basket lifting.
What can the smart control panel do?
The smart control panel provides an oil-melting preset, five built-in cooking menus, temperature setting, real-time temperature display, LED display, independent power control and power and heating indicators.
Can the fryer use solid frying oil?
Yes. The control panel includes a dedicated oil-melting preset designed to support controlled heating when solid frying oil is used. For liquid oil, the fryer can be set directly to the required cooking temperature. Operators should follow appropriate operating procedures when melting and heating frying oil.
Can the oil tank be removed for cleaning?
There are two oil tank configurations available. One version uses a removable tank without a drain valve, while the other uses a fixed tank with a drain valve. Buyers can select the preferred configuration according to their cleaning and oil-management requirements.
Can this countertop commercial fryer be used at home?
The compact EF021-C and EF022-C designs can also be used by selected home users who need a larger-capacity countertop fryer. However, the products are primarily designed for commercial and foodservice applications. Electrical installation should follow the applicable requirements of the target market, especially for models with higher power ratings.
